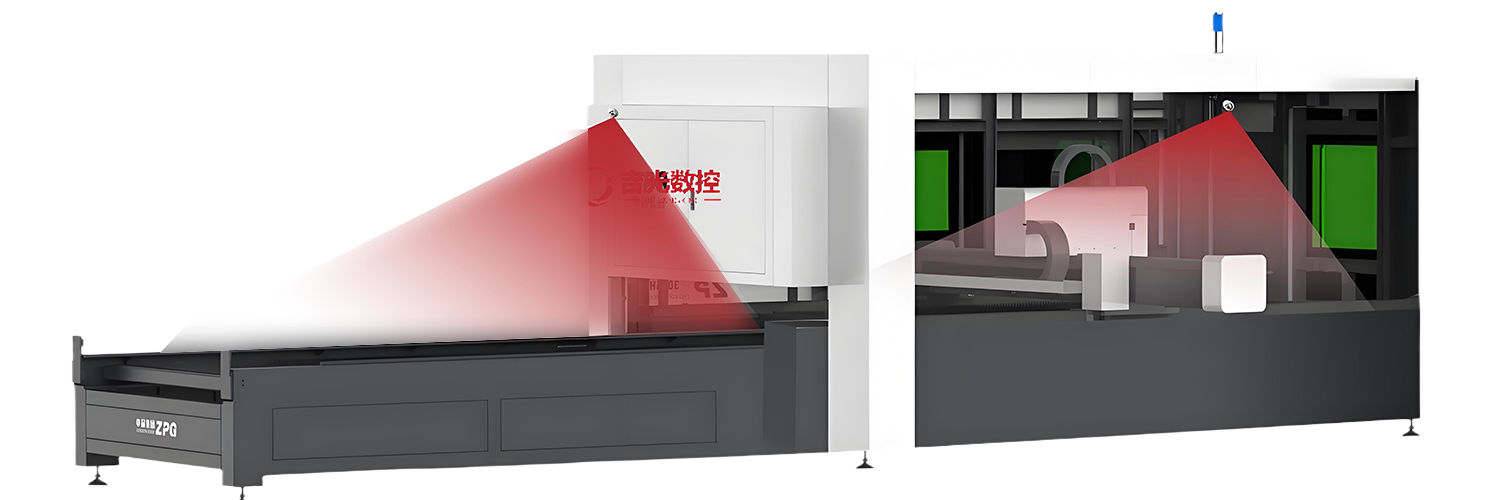

Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

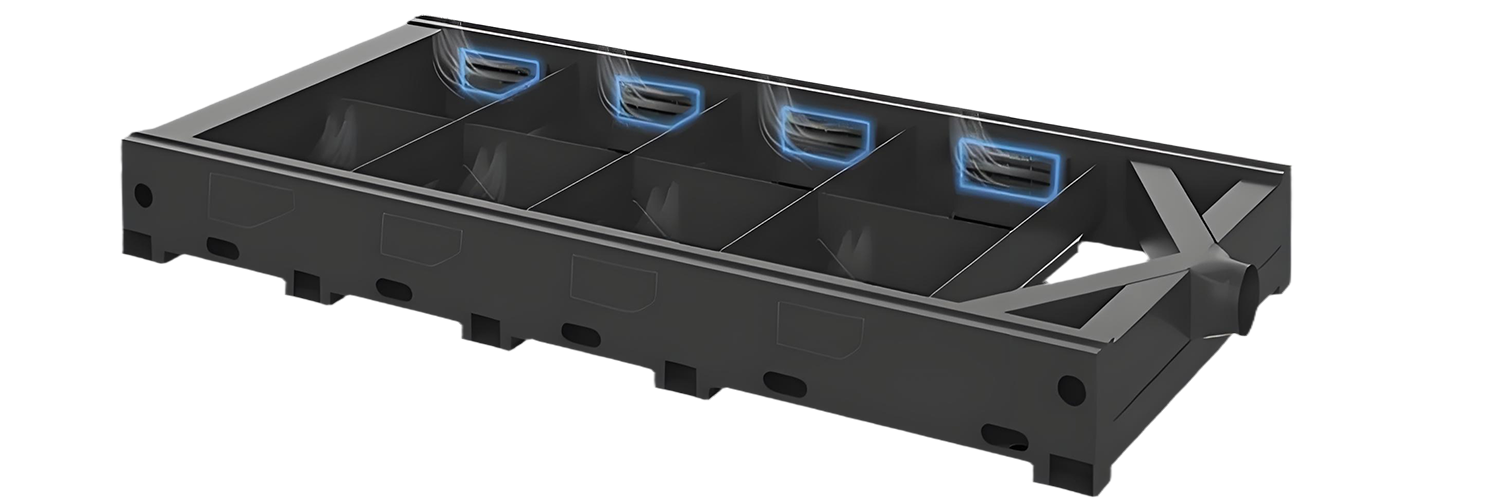

High Strength Mortise And Tenon Welded Bed Body

Welding of mortise and tenon structure, secondary aging residual stress treatment, and precision gantry milling machine ultra precision machining have increased rigidity, strength, and stability by more than 30% year-on-year.

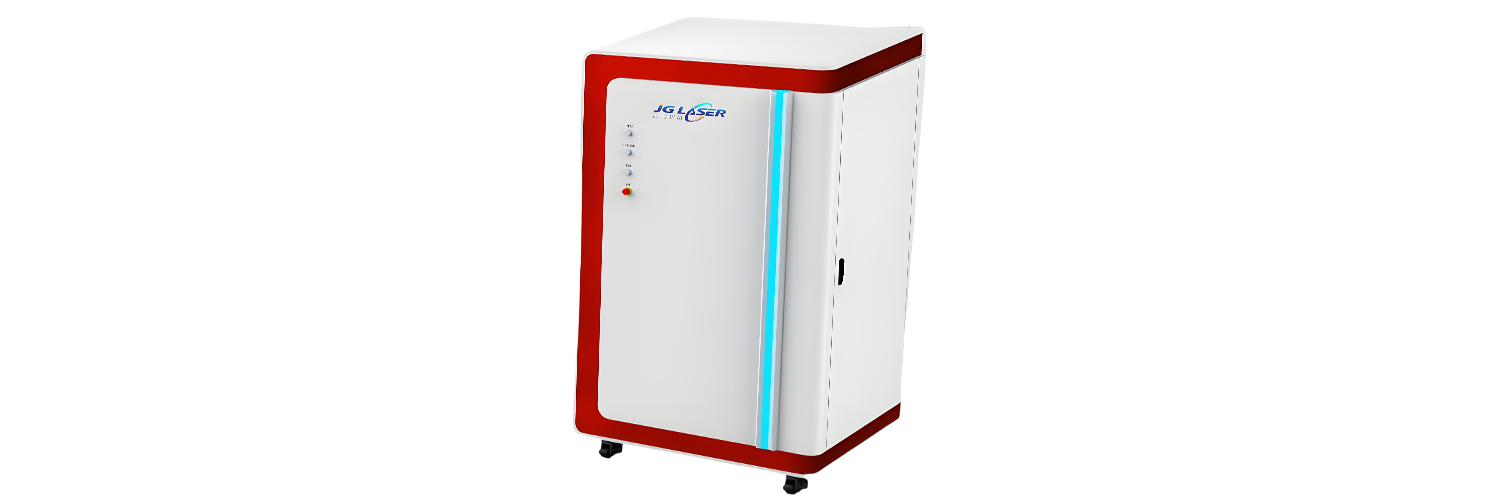

Independent Distribution Cabinet

High security

All electrical components are built-into the cabinet, it is much safer and also can prevent heating and pollution, prolong the lifespan of the components.

Air conditioner as options

For automatic constant temperature, preventing excessive temperature damage to components.

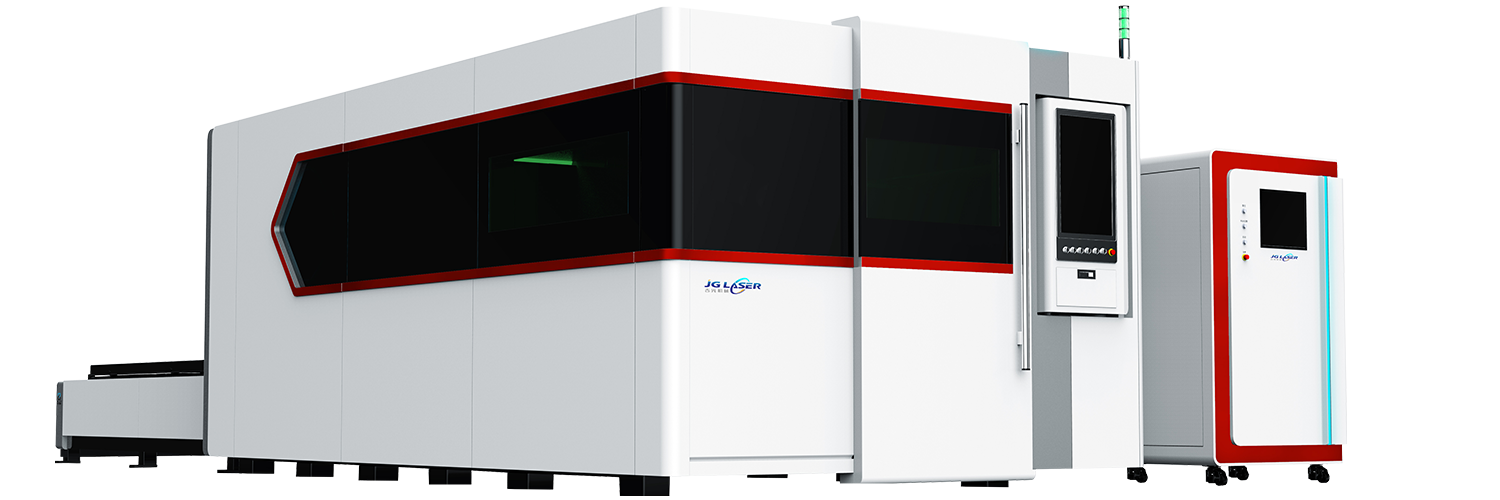

Full-Protective Sheet And Tube Fiber Laser Cutting Machine

Dual-purpose fiber laser cutting machine 6000W is a commercial laser metal cutting system with fully enclosed housing and dual functions, which can cut metal plates and tubes made of steel, aluminum, alloy, titanium, copper, brass, iron, alloy in various thicknesses and sizes, and comes with different power options from 1500W to 20000W to suit various budgets and needs.

Technical Parameters

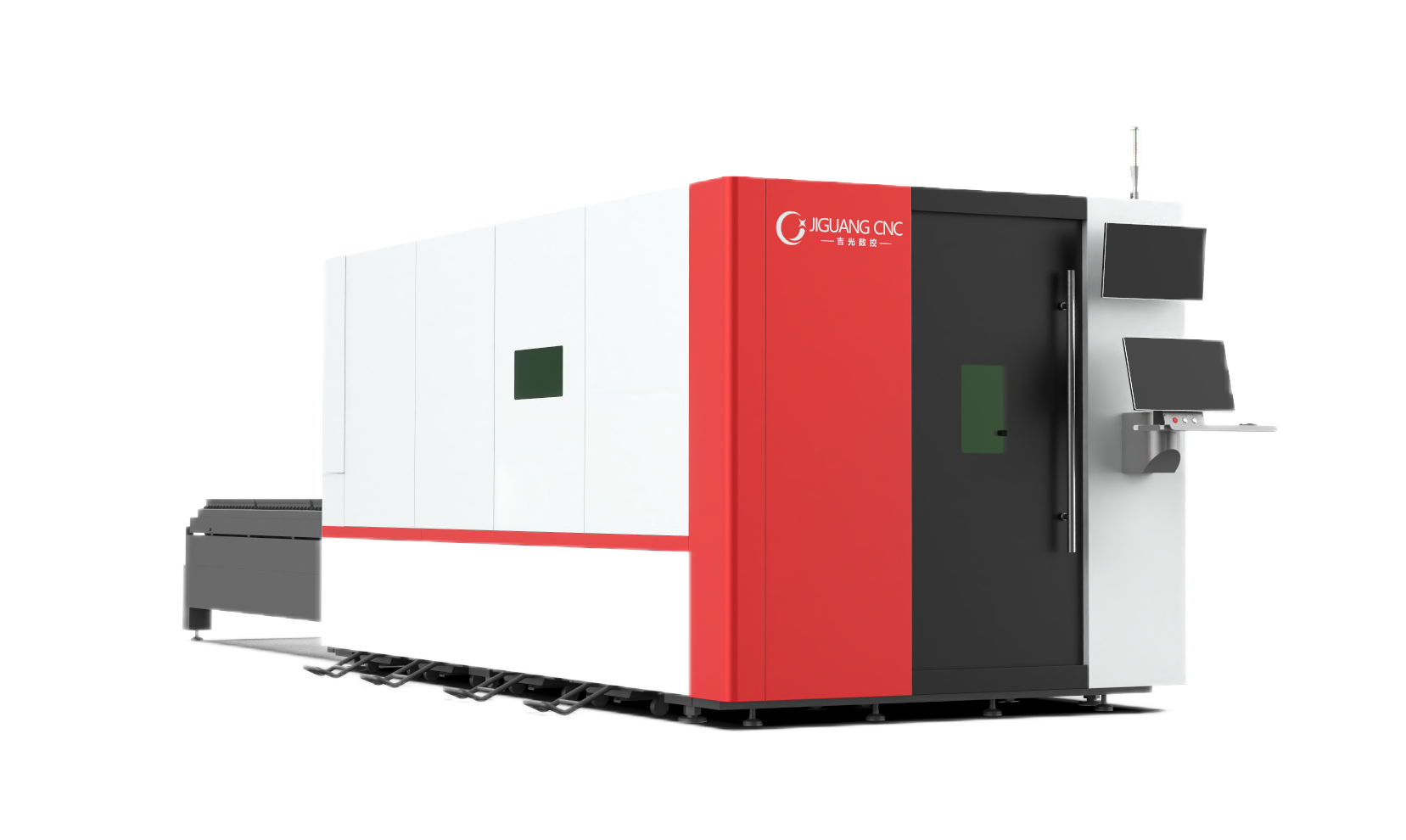

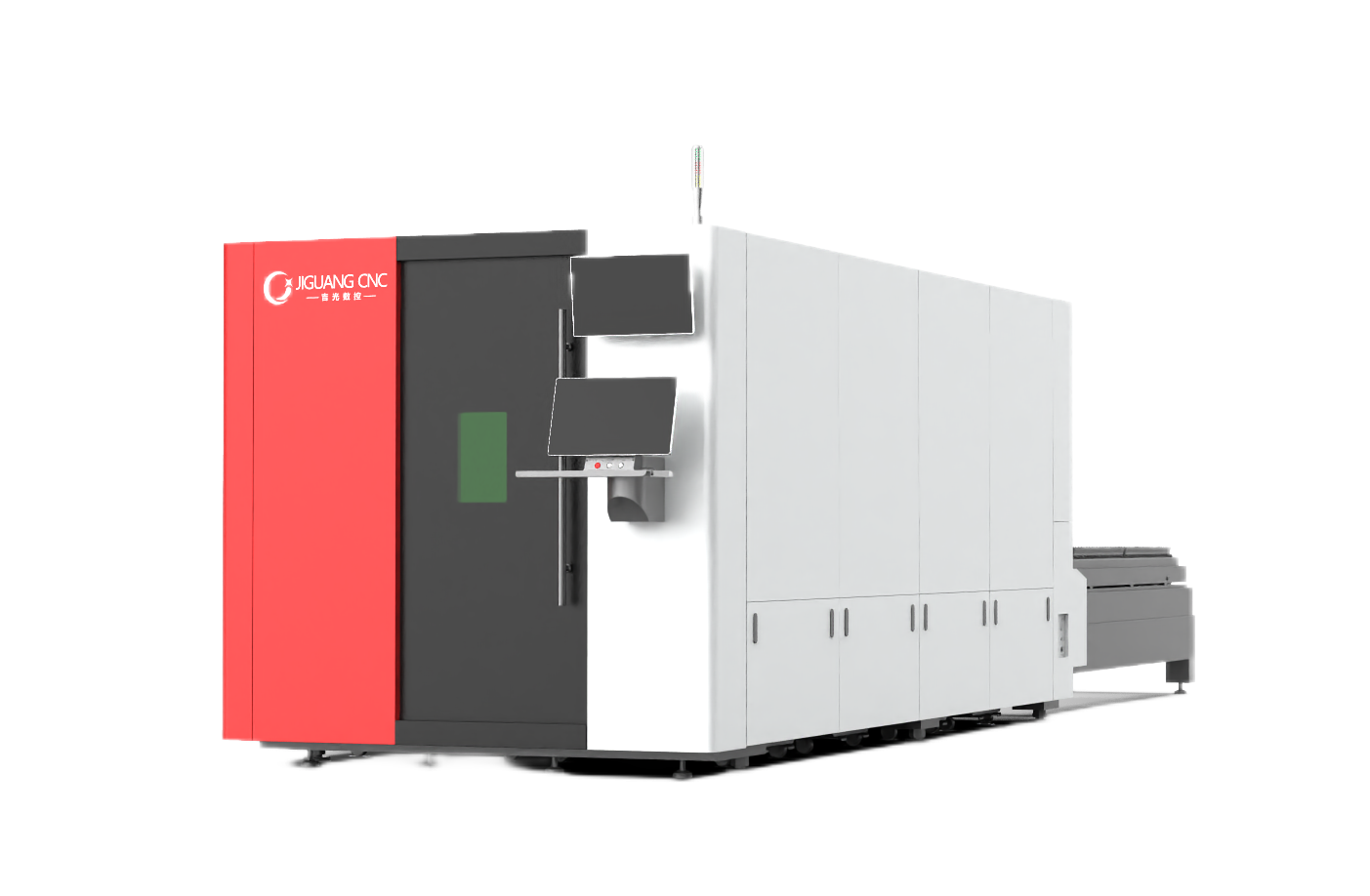

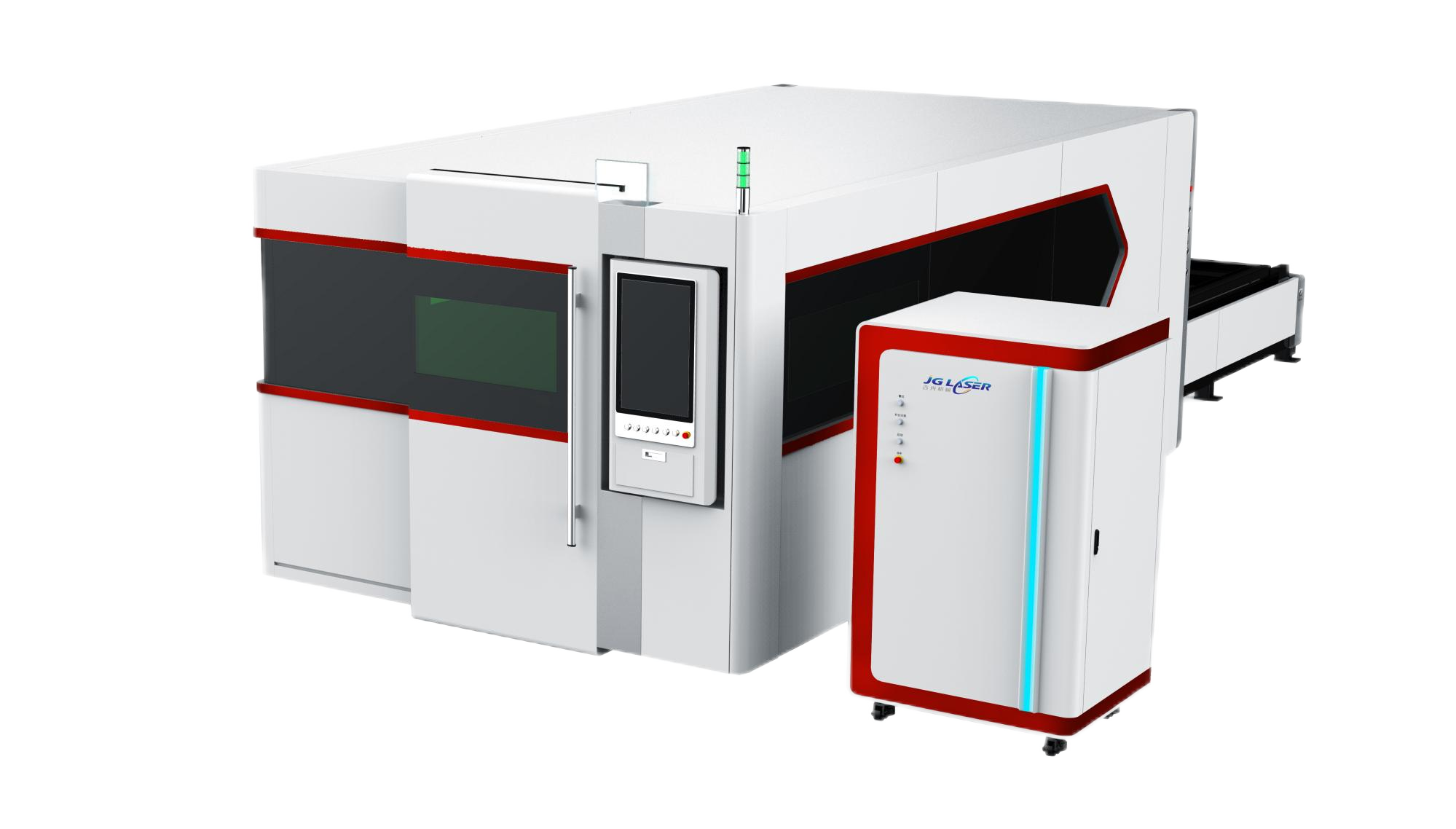

Model	JG3015DC	JG6025DC
Working Size	3050*1350	6000*2500/2000/1500MM
Power	1.5-12KW
Positioning Accuracy	0.03mm
Repeat Positioning	0.02mm
Max Acceleration	1.5G

Product Advantages

◆ Modular design for high quality matching of the whole machine.

◆ Dynamic compensation technology for thermal effect, effectively ensuring long-term and stable use and guaranteeing cutting precision of machine.

◆ Upgraded machine with metal plate welded and mortise and tenon joint structure for effectively solving problems of deformation of machine body and unstable machining.

◆ Multi-point support balancing technique, providing multiple guarantees for stability and guaranteeing stress equilibrium to prevent machine from sinking.

◆ Intelligent zoned ventilation system with high efficiency of ventilation and dust removal for good health and environmental protection. Can be equipped with automatic warehousing, full-automatic loading/unloading system, etc. for extension of automatic production line.

Pre-Sales Service



Free Sample Cutting Service

For free sample cutting/testing, please send us your CAD file (.plt or .ai), we will cut it in our factory and make a video to show you the cutting process and results, or send you a sample to check the cutting quality.



Advancing Solution Design

According to the customer's product processing requirements, we can design unique solutions for customers to support higher manufacturing efficiency and better processing quality.



Custom Machine Design

Depending on the customer's application, we can modify our machines to achieve customer's convenience and high production efficiency.

After-Sales Service

• We will provide training videos and English user manuals for installation, operation, maintenance and troubleshooting for the laser machine, and will provide technical guidance via remote means, such as TeamViewer, email, phone, mobile, Whatsapp, Skype, 24/7 online chat, etc., when you encounter installation, operation or adjustment problems. (Recommended)
• You can come to our laser machine factory for training. We will provide professional guidance. Direct and effective face-to-face training. We have assembled machines, various tools and testing facilities here. Training time: 3 to 5 days (recommended)
• Our engineers will provide on-site guidance and training services in your local area. We need your assistance in visa procedures, prepayment of travel expenses, and accommodation before the dispatch and during the service. During the training, it is best to arrange a translator for our engineers (if they do not speak English).

Warranty Policy

• 3 years for the whole machine, 18 months for the laser, 12 months for the chiller, no warranty for the lens/mirror/nozzle.
• Long-term lifetime maintenance, the after-sales department will provide 24/7 English online support.
• Except for man-made damage, we are responsible for providing accessories free of charge during the warranty period.
• After the warranty period, the buyer only needs to pay for the actual repair costs.
• Certificate support: CE, FDA, SGS.

Small Package



Strong waterproof bottom made of plywood.



Spare parts for the laser source (separate plywood housing) and laser bed.



Corners are protected with foam and secured with protective film.



All covered with a strong, hard protective film.



Vacuum packed


