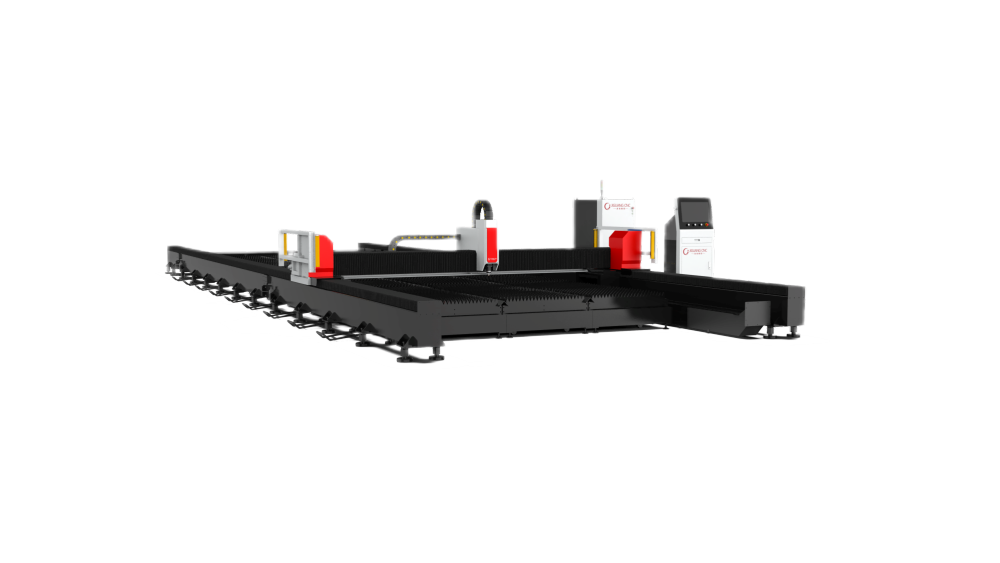

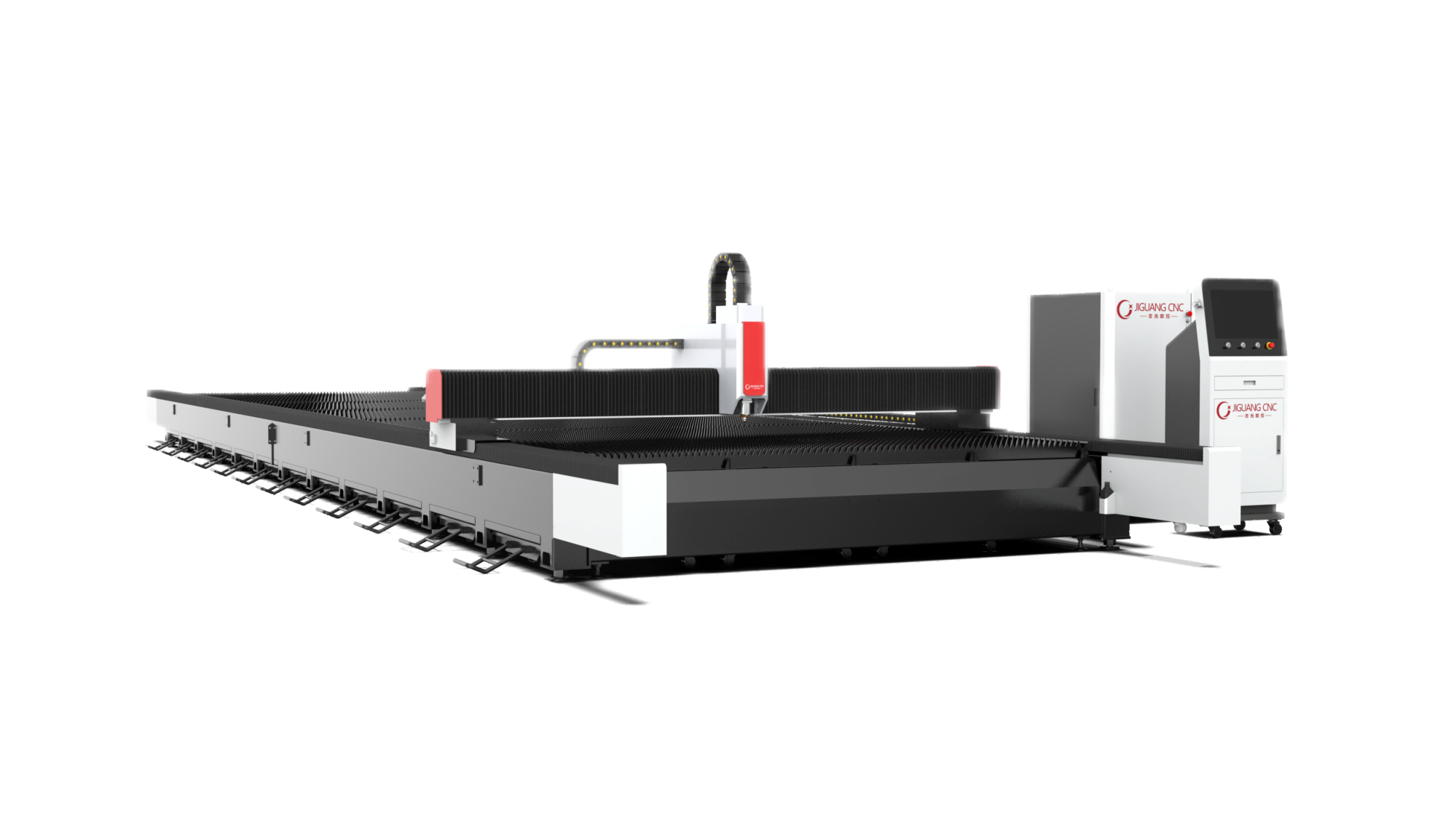

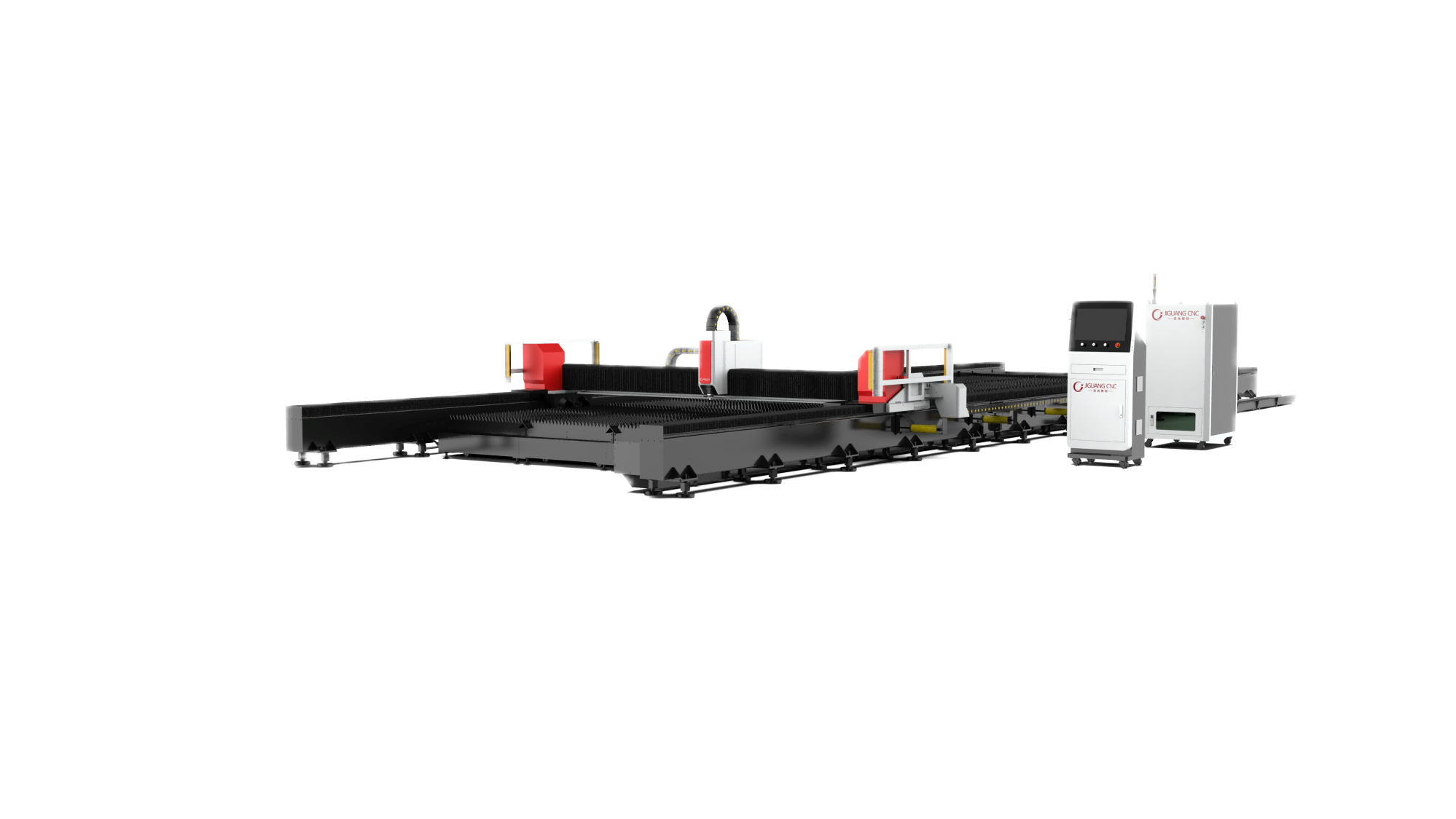

The ultra-large format fiber laser sheet metal cutting table is a high-power laser metal cutting machine with power options of 6000W, 12000W, 20000W, 30000W, 40000W or higher. Its cutting width ranges from 2500mm to 5000mm, and its cutting length ranges from 6000mm to 32000mm. mm can be customized according to customer needs to cut the entire thick metal plate.
Advantages：

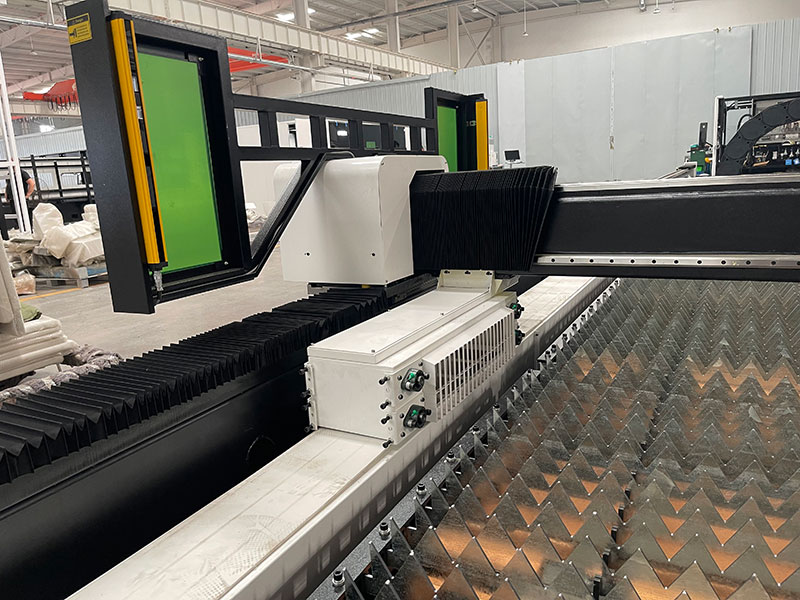

Enhanced safety with light curtain
With the lightw8 gantry design, its stable inside mechanical structure guarantees speed, in the mean time the light curtain inside makes operation safer.

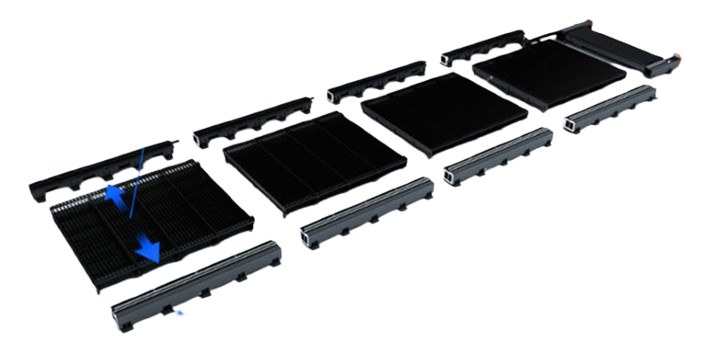

Modular workbench design
The segmented modular workbench can be disassembled and replaced without delaying production. The modular expandable bed body can be expanded indefinitely Meeting the demand for cutting ultra-large formats.

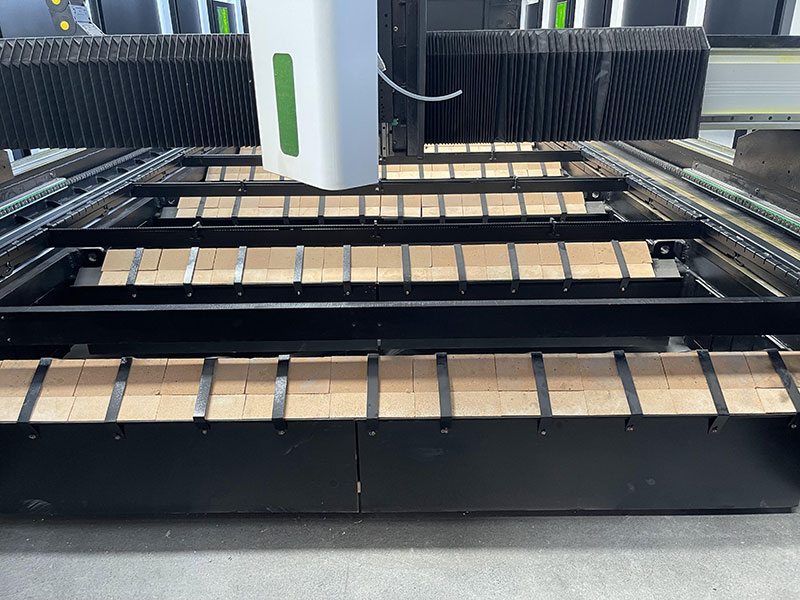

New fire-resistant technology
The cutting bed is covered with fire-resistant bricks to prevent the bed from being directly exposed to high-temperature baking, improving the fiber Laser lifespan.

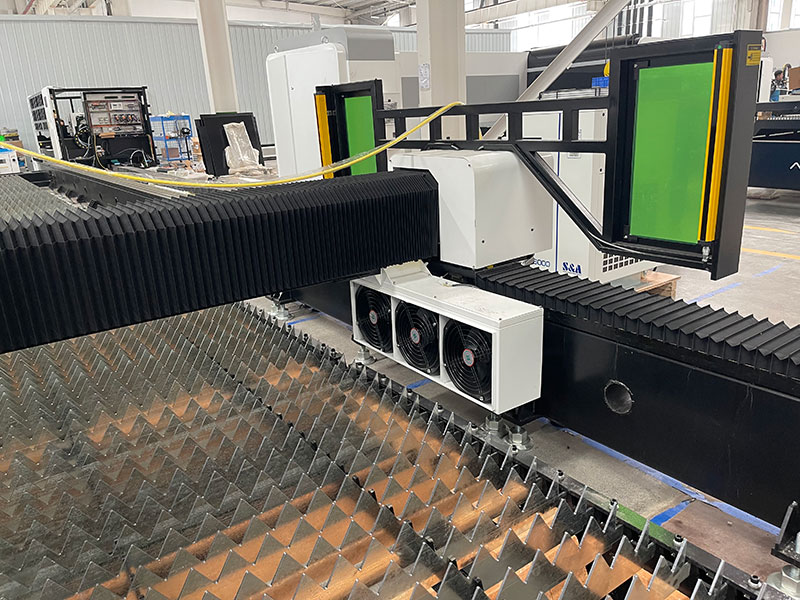

Powerful smoke exhaust system
When the laser cutting head moves to a particular area, the area will start to draw air; adapt the right blower to blow the left side. The right side is equipped with a large air volume blower and cooperates with the left side large suction blower to create a good working environment for you.
The bevel laser cutting functions is optional.
Application of Ultra-Large Fiber Laser Sheet Metal Cutting Table 30000W
Ultra-Large format fiber laser sheet metal cutting table is a powerful fiber laser cutting machine can cut through stainless steel, carbon steel, mild steel, alloy steel, galvanized steel,
silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and so on.
Ultra-Large format fiber laser sheet metal cutting table is used in various industries such as machinery components, electrics, electrical cabinets, kitchenware, elevator panel, hardware tools,
metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, medical instruments, automobile parts and other metal cutting industries.The ground rail cutting machine
with the advantages of high efficiency, safety and high accuracy, which can improve work efficiency and product quality.
Parameters
Pre-Sales Service
Free Sample Cutting Service
For free sample cutting/testing, please send us your CAD file (.plt or .ai), we will cut it in our factory and make a video to show you the cutting process and results, or send you a sample to check the cutting quality.
Advancing Solution Design
According to the customer's product processing requirements, we can design unique solutions for customers to support higher manufacturing efficiency and better processing quality.
Custom Machine Design
Depending on the customer's application, we can modify our machines to achieve customer's convenience and high production efficiency.
After-Sales Service
• We will provide training videos and English user manuals for installation, operation, maintenance and troubleshooting for the laser machine, and will provide technical guidance via remote means, such as TeamViewer, email, phone, mobile, Whatsapp, Skype, 24/7 online chat, etc., when you encounter installation, operation or adjustment problems. (Recommended)
• You can come to our laser machine factory for training. We will provide professional guidance. Direct and effective face-to-face training. We have assembled machines, various tools and testing facilities here. Training time: 3 to 5 days (recommended)
• Our engineers will provide on-site guidance and training services in your local area. We need your assistance in visa procedures, prepayment of travel expenses, and accommodation before the dispatch and during the service. During the training, it is best to arrange a translator for our engineers (if they do not speak English).
Warranty Policy
• 3 years for the whole machine, 18 months for the laser, 12 months for the chiller, no warranty for the lens/mirror/nozzle.
• Long-term lifetime maintenance, the after-sales department will provide 24/7 English online support.
• Except for man-made damage, we are responsible for providing accessories free of charge during the warranty period.
• After the warranty period, the buyer only needs to pay for the actual repair costs.
• Certificate support: CE, FDA, SGS.
Small Package
Strong waterproof bottom made of plywood.
Spare parts for the laser source (separate plywood housing) and laser bed.
Corners are protected with foam and secured with protective film.
All covered with a strong, hard protective film.
Vacuum packed
Internal steel frame protectors
Plywood packaging and steel strapping outside to secure the box.
Packing is done using regular containers or flat rack containers.
